Pulsar Merger Duo NXP50 multispectral

Pulsar Merger Duo NXP50 multispectral

Regular price $8,999.00 NZD
Regular price Sale price $8,999.00 NZD
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

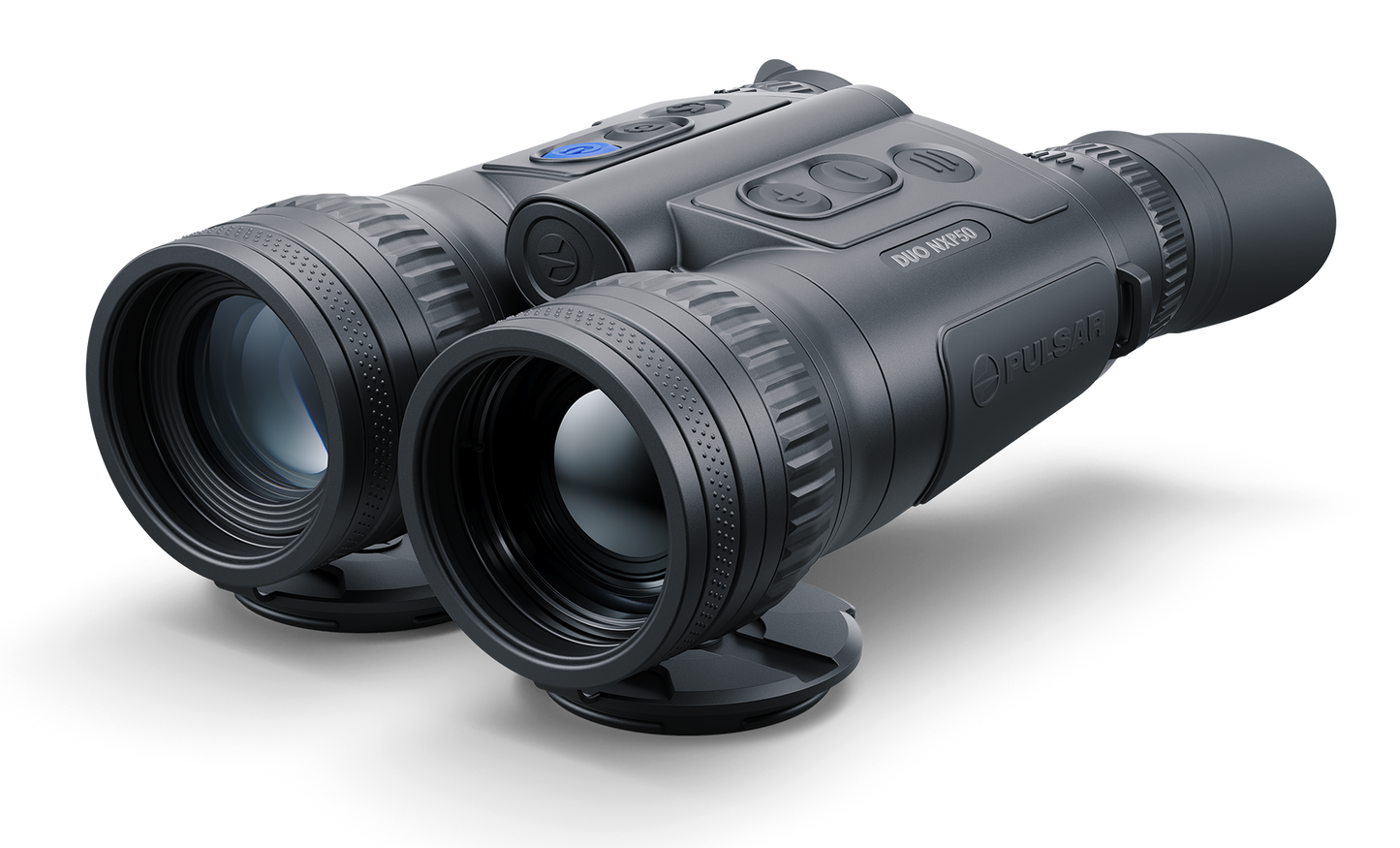

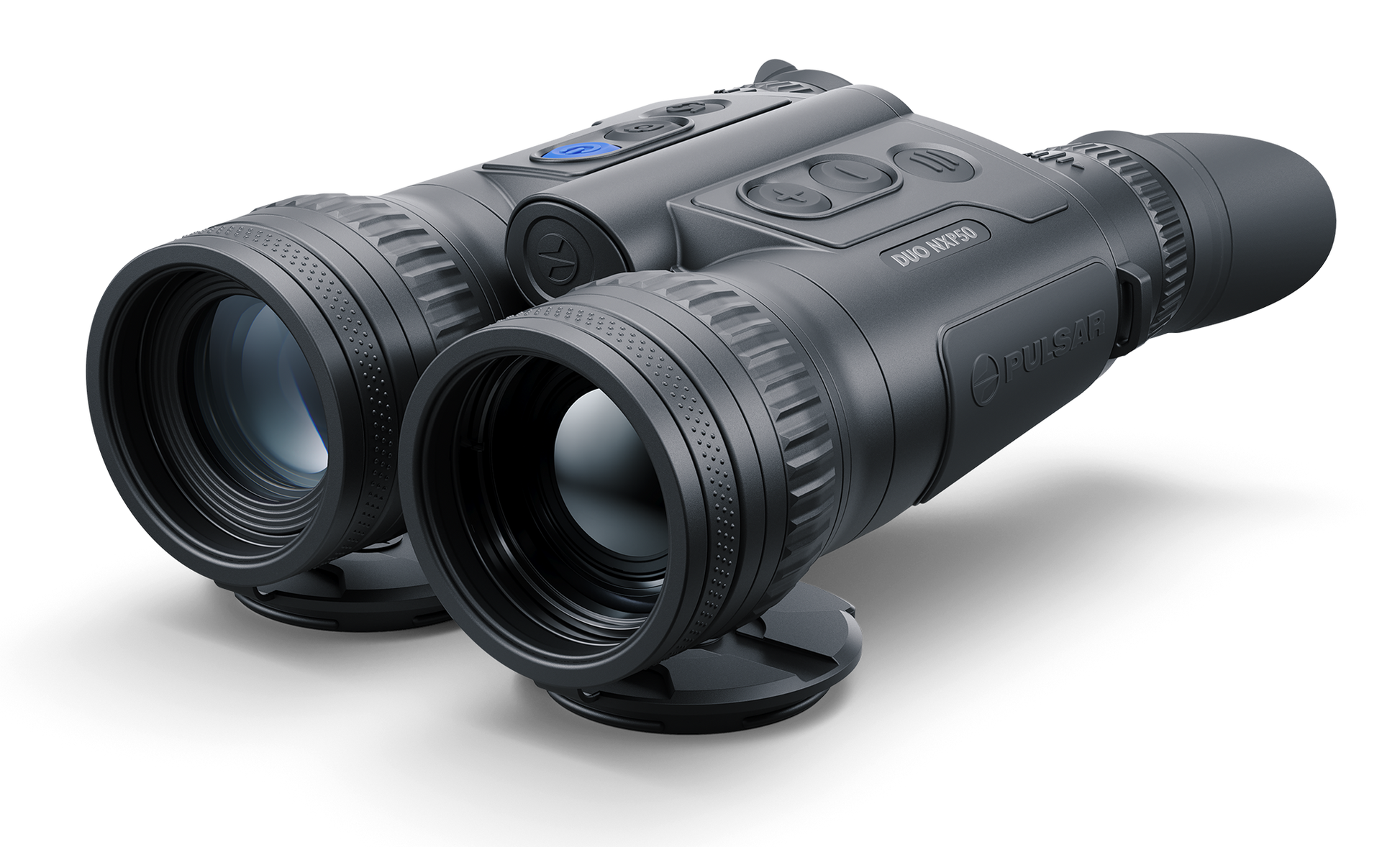

The Pulsar Merger Duo NXP50 combines advanced thermal imaging with cutting-edge NIR digital night vision, delivering true multi-spectrum performance in a rugged, compact binocular platform.

Its highly sensitive Lynred 640×480 thermal sensor offers a wide field of view, excellent image clarity, and powerful penetration through mist, rain, and dense foliage — ideal for challenging environments. Paired with a Near-Infrared (NIR) optimised Sony CMOS monochrome sensor, the NXP50 provides industry-leading low-light performance, capable of detecting faint light sources at extreme distances.

Users can seamlessly switch between thermal and night vision modes with a single button or combine both with Picture-in-Picture (PiP) functionality for enhanced situational awareness.

A 940nm 'stealth' removable IR illuminator delivers invisible infrared lighting, further enhancing night vision without revealing your position.

Chosen by Coastguard New Zealand and the New Zealand Police, the Merger Duo NXP50 is trusted for its reliability, versatility, and all-weather performance in mission-critical situations.

Thermal sensor

  • Lynred PICO640 a-Si µbolo UFPA
  • 640x480 / 17µm / 50Hz
  • System NETD <18mK
  • Proven reliability MIL-STD 810 : ML-STD 883 : TWS qualified

Thermal optics

  • F50 – f1.0 precision germanium lens
  • 3x – 24x magnification
  • Field-of-view 12.4˚ / 21.8m @ 100m
  • Spatial Resolution (IFOV) 1.16’ MOA / 34mm @ 100m
  • Detection range 1860m*

Night Vision specification

  • 1920x1200 Near-Infrared optimised monochrome sensor
  • F50mm f1.4 fully multicoated lenses
  • 2x-16x magnification
  • Field-of-view 17.5˚ / 30.7m @ 100m
  • Spatial resolution (IFOV) 0.54' MOA / 15.9mm @ 100m

General

  • Made in Europe by Pulsar
  • Ultra low light performance in night vision mode
  • 500mW 940nm ‘stealth’ IR illuminator with adjustable beam
  • Weight 1200 grams with battery
  • Size 207x140x73mm

*Based on the standard Johnson's criteria for an object 1.8m x 0.5m
