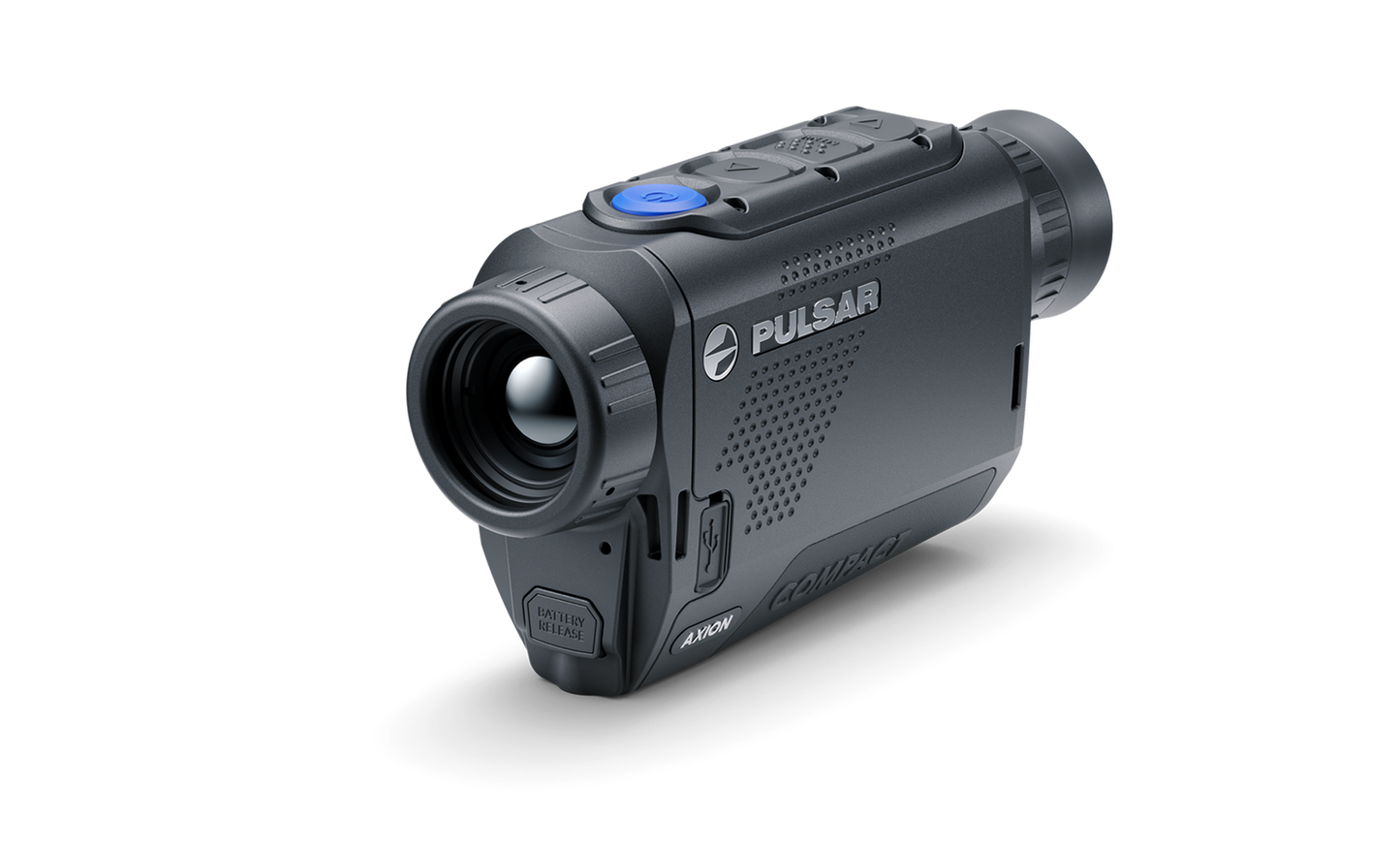

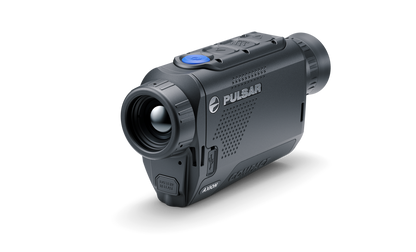

The Pulsar Axion XQ19 Compact has a very wide field-of-view and has all the great operational features expected from a Pulsar thermal. It is the lightest and most compact Pulsar thermal monocular.
It is fitted with the proven Lynred 384x288 / 17µm sensor that delivers excellent rain, mist and foliage penetration. Its precision ground F19mm f1.0 lens has the widest field-of-view in the Axion range.
The XQ19 configuration was first introduced in 2015 with the highly popular Pulsar Quantum XQ19. The new Axion XQ19 Compact sets a new standard in affordable, high quality thermal imaging that is ideal for bush stalking, forestry, farming, property security, rural fire prevention, marine safety and viewing whilst walking.
Sensor
Lynred PICO384 a-Si µbolo UFPA
384×288 / 17µm / 50Hz
System NETD <18mk
Proven reliability MIL-STD 810 / MIL-STD 883.
Optics
Precision ground F19 / f1.0 Germanium lens
1.5x – 6x magnification
Field-of-view 19.5˚ / 34.7m @ 100m
Spatial resolution (IFOV) 3' MOA / 90.3mm @ 100m
Detection range 750m*
General
Made in Europe by Pulsar
Weight 250 grams with battery
Size 134mm x 38mm x 71mm
*Based on the standard Johnson's criteria for an object 1.8m x 0.5m
